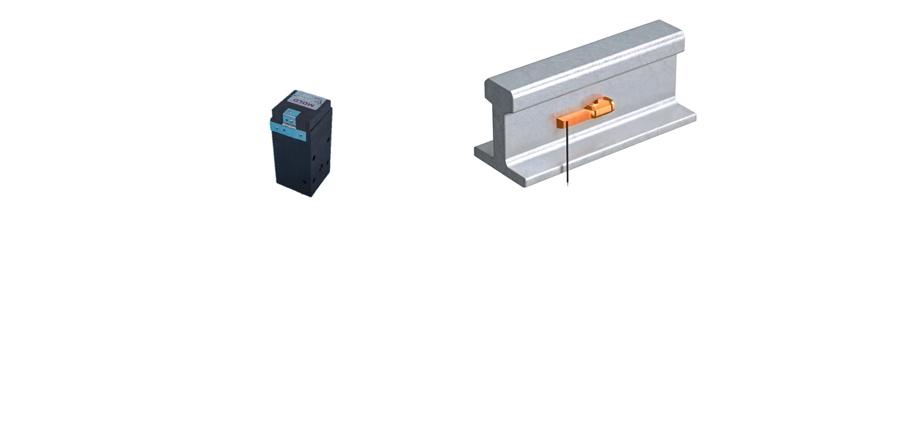

Exothermic Welding Molds for Rail Connections are purpose-built graphite molds for joining conductors to rail sections, rail bonds, and related track grounding connections with a permanent molecular bond.

Unlike mechanical rail bonds or bolted clamps, an exothermic rail weld creates a low-resistance, corrosion-resistant connection that does not loosen under vibration, thermal cycling, or fault current.

If you are sourcing exothermic welding molds Rail R4, R5, R6, R8, R10, R12, this category covers the standard connection styles.

1. R Models
2. Applications
3. Choose
4. People also ask
5. Request a quote

Rail Connections

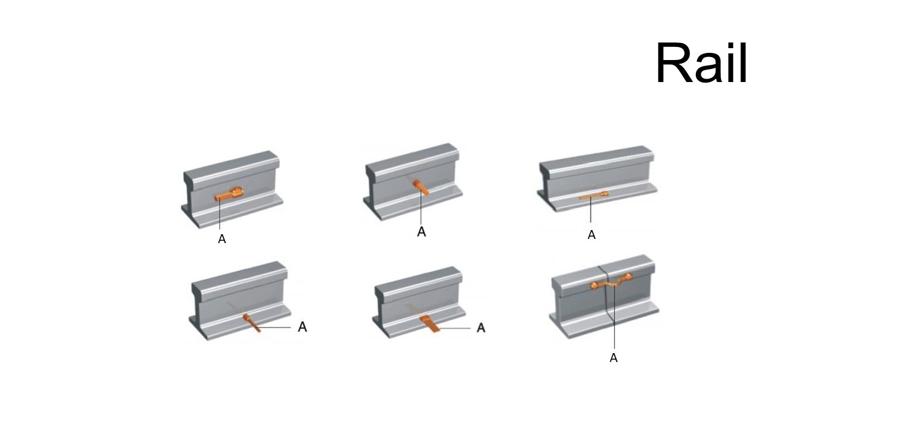

This range focuses on commonly requested Rail mold codes:

• R4 / R5 — compact rail joints for lighter bonding conductors and smaller rail bond applications
• R6 / R8 — mid-range connections for standard rail bonding and track grounding conductor sizes
• R10 / R12 — heavier rail sections and higher-capacity bonds where weld volume and mold cavity size must match larger conductors

Exact mold selection depends on rail profile, conductor size, and joint type. Share your rail and conductor dimensions plus a connection sketch, and we will confirm the correct R mold, welding powder charge, and handle/frame accessories.

Watch a video : 3 benefits for you to use our molds.

Applications

R rail molds are widely specified for:

• Track return and traction bonding connections
• Rail-to-cable and rail-to-bar grounding bonds
• Railway signaling and equipotential bonding joints
• Metro and industrial rail grounding where bolted rail clamps are not preferred

Because the finished weld is permanent, these molds are preferred on projects that prioritize long-term electrical continuity and reduced maintenance.

Choose

To choose among R4, R5, R6, R8, R10, and R12, confirm:

1. Conductor size — cable/bar cross-section and rail profile or bond type
2. Joint orientation — rail web, base, or head bonding layout as specified
3. Powder size — matched weld metal volume for a complete fill

Using the wrong cavity size is the most common cause of incomplete welds. If your rail or conductor size sits between two codes, request a size chart before ordering.

You also ask

1. How we design and manufacture the molds ? > Watch video
2. How our exothermic welding powder works with the molds? > Watch video

Request a quote

Send your conductor sizes, quantity, and destination port.

We can provide mold recommendations, powder pairing, and a formal quotation for contractors, distributors, and grounding system integrators.
